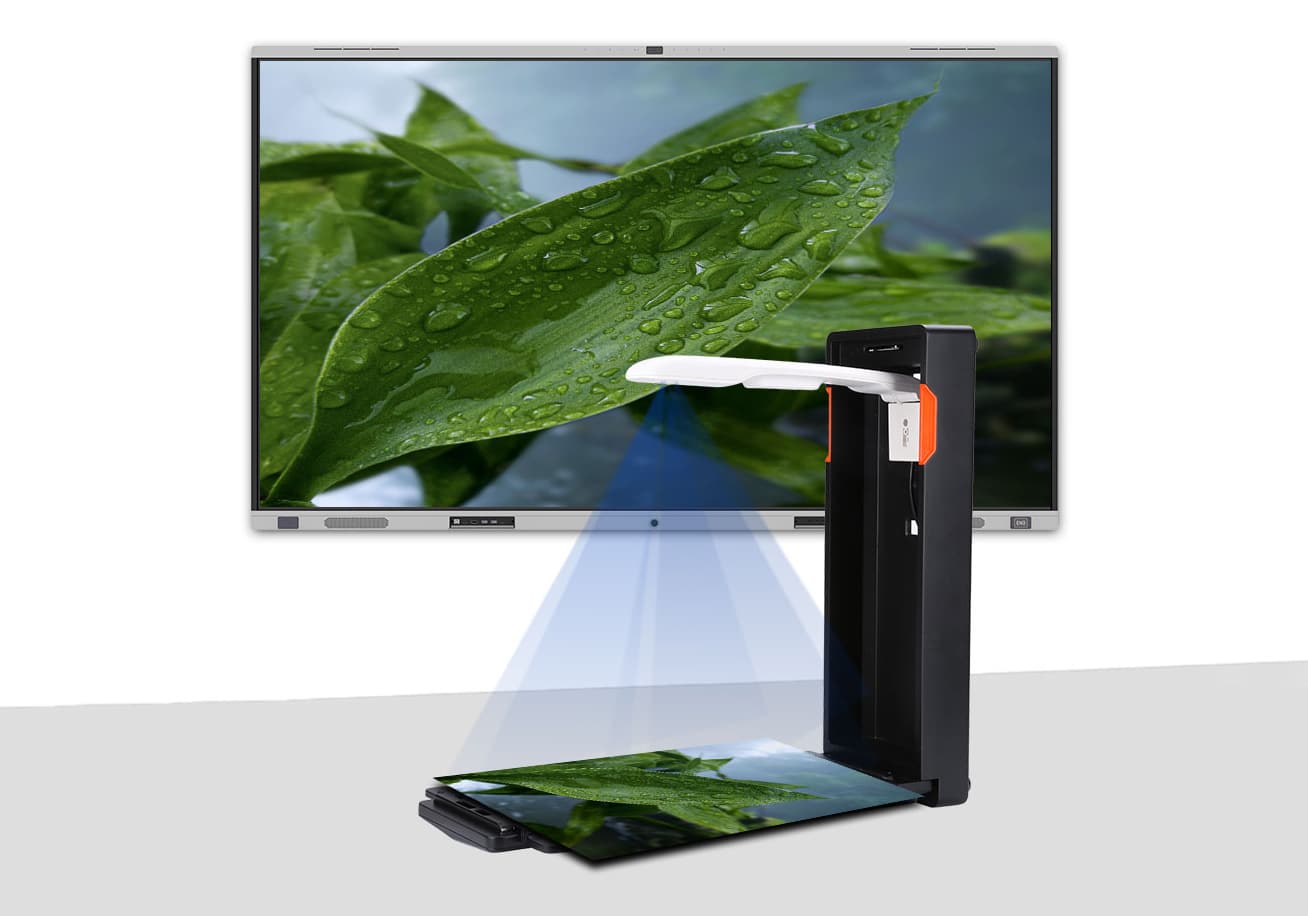

搭载 1200 万像素高清摄像头，可清晰拍摄课本教材，完美还原实物展示的每一处细节，充分满足教学拍摄需求。

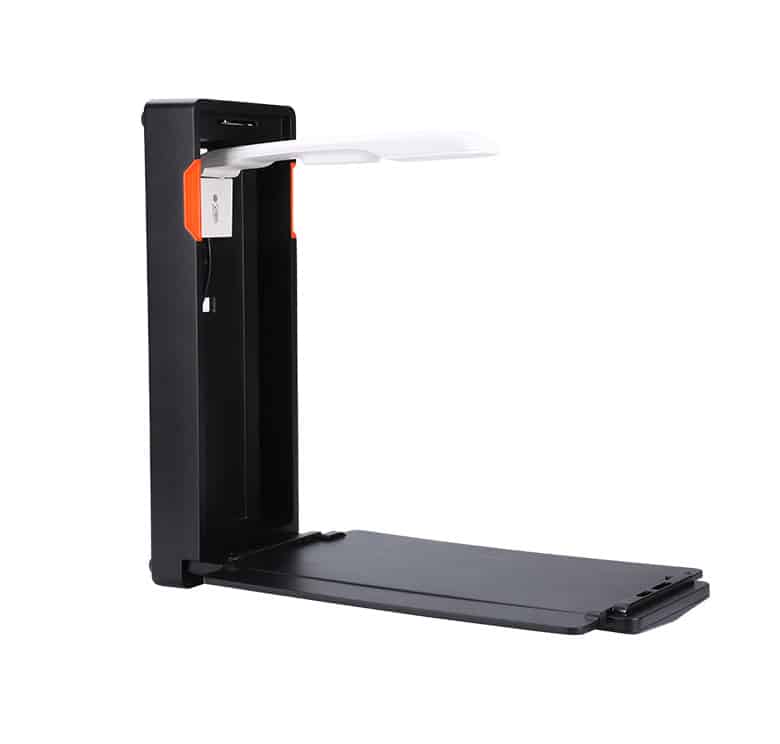

采用悬臂式结构设计，有效减少悬臂对拍摄画面的遮挡，极简外观适配各类教学场景，操作使用更灵活便捷。

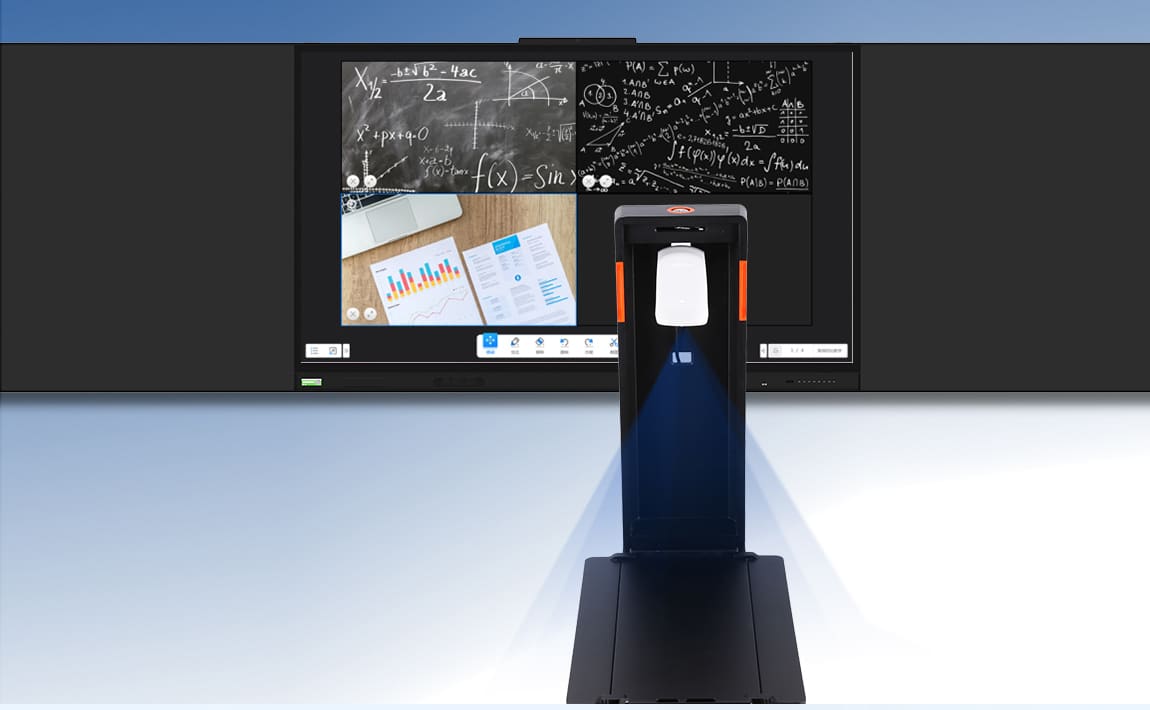

支持拍摄画面实时预览显示，可快速完成画面缩放、旋转、补光、拍摄等全流程操作，无需繁琐设置，轻松上手。
内置多组 USB 接口，可无缝外接 U 盘等各类外部设备，充分满足教学场景的多元拓展需求。
支持扫描仪拍摄画面与批注内容同步缩放、同步移动，批注操作全程流畅不卡顿，完美适配课堂实时讲解需求。
| Main sensor features | 12MP |
| Output resolution | 1920*1080 2592*1944 3264*2448 |
| Power supply method | powered by USB |

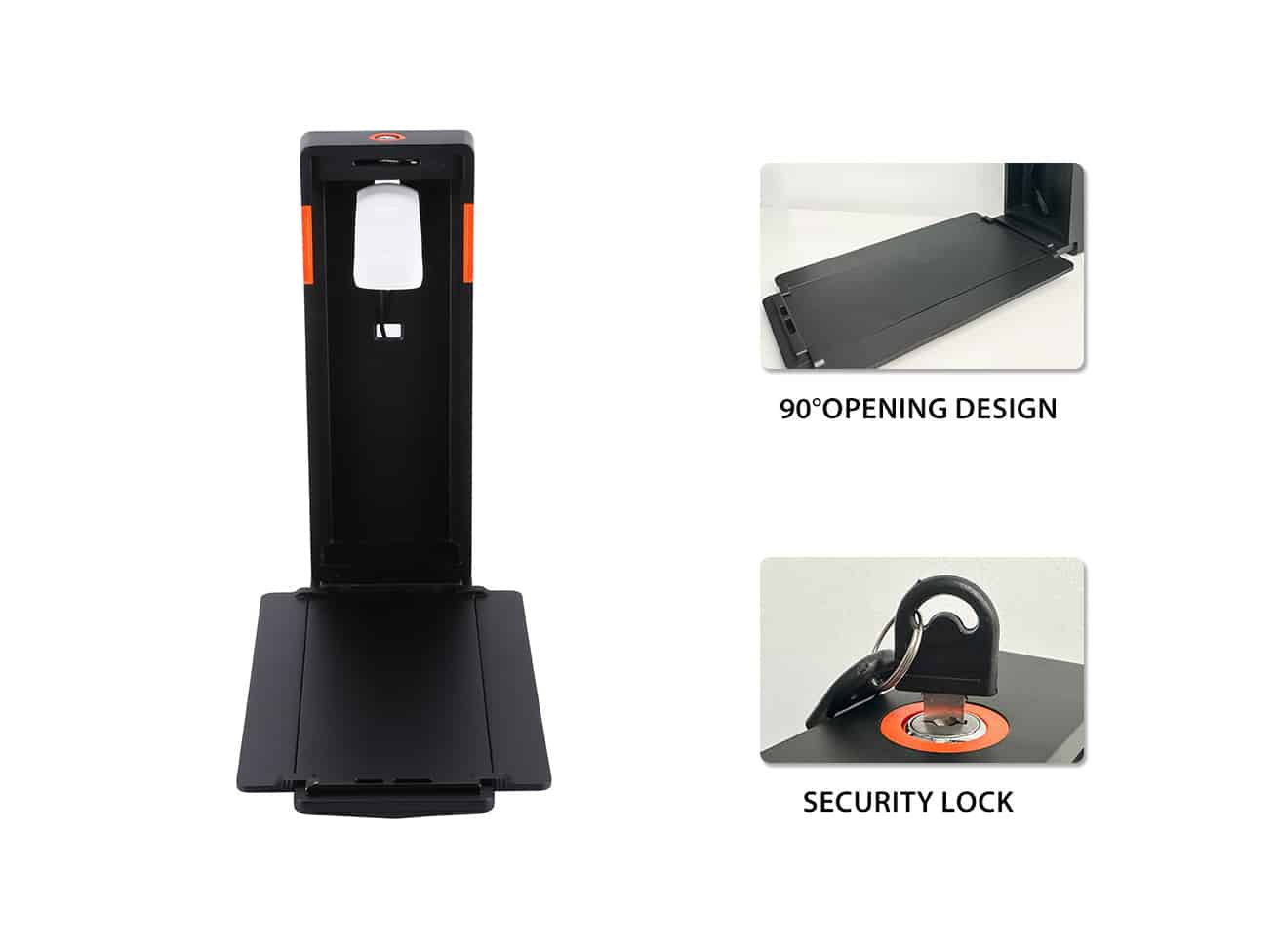

| Safety lock | support |
| Camera | high-definition camera with a 13MP fixed-focus lens |
| imaging area | Supports A4 or larger; Colors: 24-bit or higher. |
| Zoom | 12x digital zoom |
| fill light | 4-level touch control; LED fill light with adjustable brightness levels. |
| image compression | DSP built-in image compression. |
| White balance | Auto-calibration |
| Color compensation mode | Auto-calibration |
| Interface | One USB 2.0 Type-B connector for connecting to computers and all-inone devices to enable USB video output; two USB 2.0 Type-A expansion interfaces supporting USB flash drives or mice. |
| Installation method | Wall-mounted installation, without pneumatic support rods, featuring a design with no sharp corners or edges; utilizes a tri-fold flip-open tray that provides a surface area ≥ A4 size when unfolded. |
| Support bracket | The bearing capacity is no less than 3 kilograms. |
| Operating environment temperature | 10°C~50°C |
| Operating environment humidity | <85% |
| Storage environment temperature | -20°C~ 60°C |
| Storage environment humidity | <85% |
| Standby current | ≤150 mA |
| Operational current | <400mA |

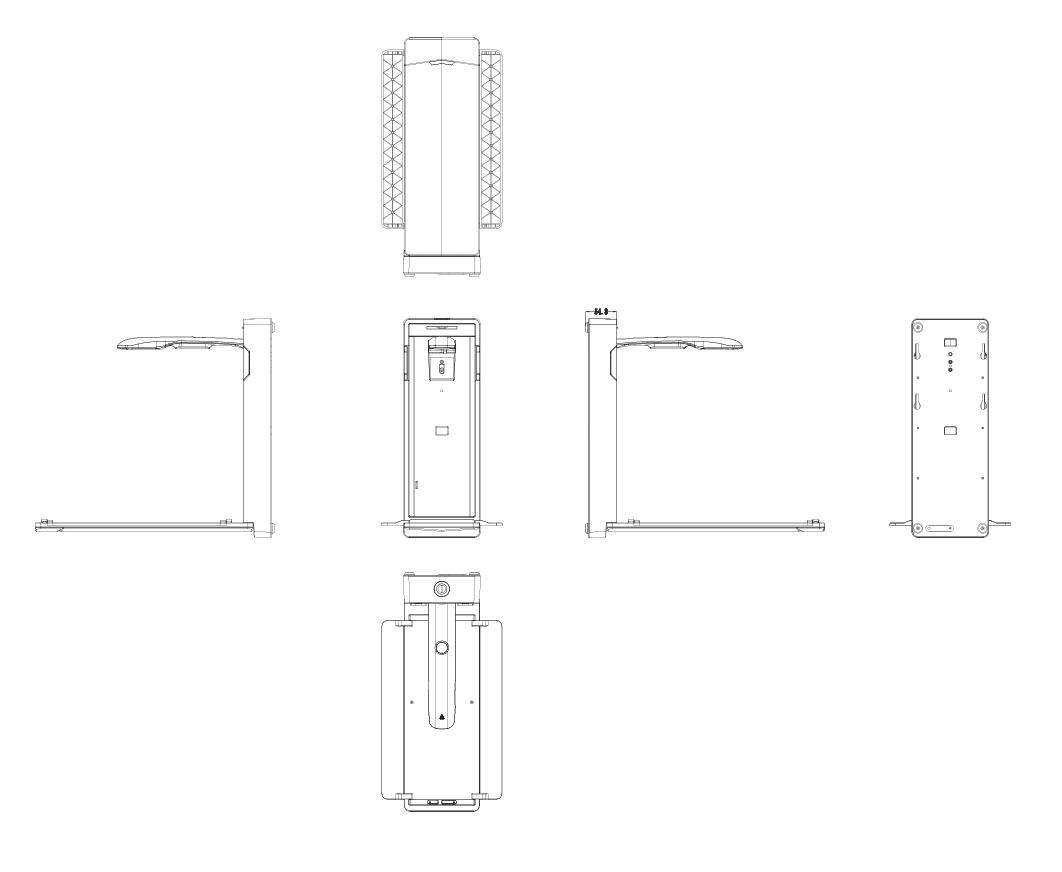

| Product working dimensions | 428.2mm (L) * 216mm (W) * 392mm (H) |
| Packaging Box Dimensions | 440mm (L) × 116mm (W) × 188mm (H) |
| Weight | Net weight 1.5kg / Gross weight 2kg |
